deVCU

The Versatile Controller deVCU

For your purpose-fit applications :

      • Designed for 12V/24V systems
      • Compact housing
      • Customized features & applications
      • Universal calibration & monitoring
      • Designed for Four Wheeler

deVCU as Four Wheeler Vehicle Controller

FEATURES:

  • Drive Management
  • Communication with the BMS
  • AC charging communication & monitoring
  • DC charging monitoring
  • Communication with the on-board charger
  • Communication with the power steering control unit
  • Communication with instrument cluster unit & infotainment system
  • Cabin climate control management
  • Control of the Auxiliary MCU
  • Communication with DC-DC charger
  • System diagnostics
  • Algorithm development environment in MATLAB/Simulink
  • Support for generating executables that include algorithms, device drivers & real time operating system
  • Full access to I/Os
  • Full read access of all signals
  • Real time calibration
  • SW download via TAPAS calibration tool
  • Calibration & measurements interface via CAN

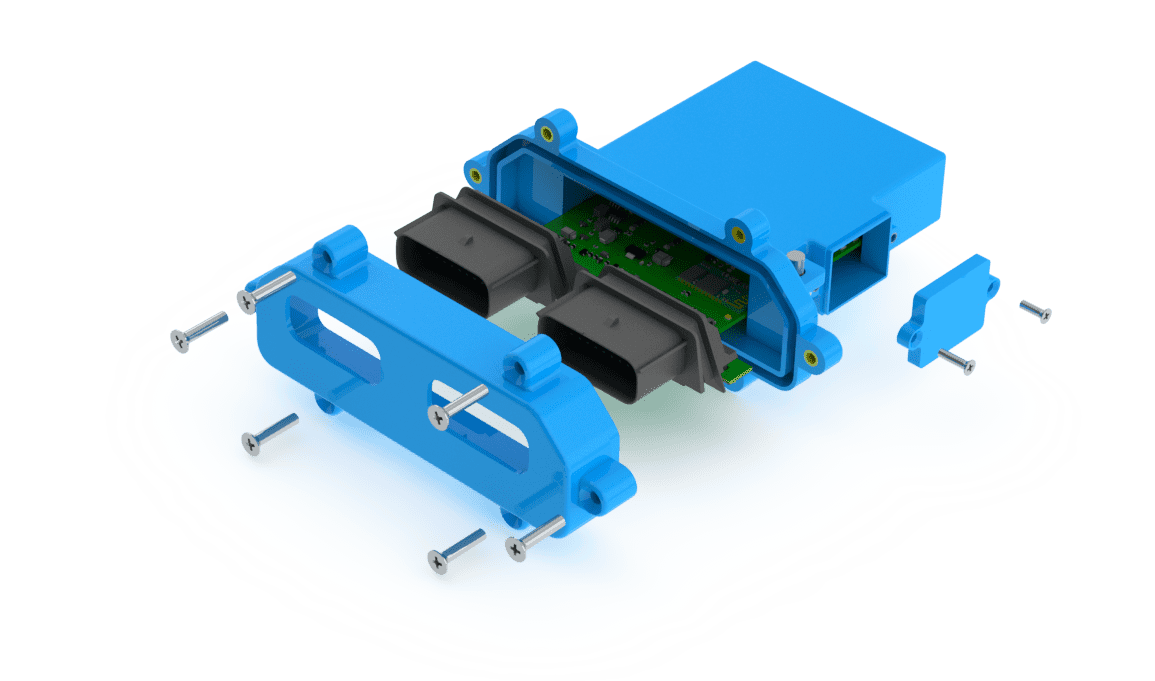

Two Wheeler Vehicle Control Unit + IoT deVCU Lite

vcu lite


Features :​

  • Controller : STM32 series​

  • GSM Interface : 2G​

  • Vehicle Interface : CAN 2.0A/B​

  • Supply : 9V to 25V DC​

  • 12V Digital Inputs  = 8​

  • 12V Digital Outputs = 4​

  • IP67 Rated Enclosure​

  • Real Time Clock with backup​

  • GNSS : GPS, GLONASS, GALILEO, BEIDOU​

  • Application : Electric Vehicle VCU + Telematics​

  • Classic Bluetooth 2.0 ​

  • On board uSD card​

  • Dual SIM interface ( Under development )​

  • Over voltage protection​

  • Amazon AWS Cloud Integration​

  • Open IoT Thingsboard Integration

UDS Diagnostics Stack -
Services

Diagnostic session control

ECU reset

Tester present

Read/write data by identifier

Read/write memory by address

Clear diagnostic info

Read DTC

IO control by identifier

Routine control

Request download

Request upload

Transfer data

Request transfer exit



deMCD

Pin Naming

Parameter Naming and configuration

DTC Naming and configuration

Code Flashing

Parameter value change based on UDS protocol

DTC (Diagnostic Error Code) reading based on UDS protocol

XCP protocol for reading runtime environmental variables (RTE)

CAN database import (.dbc)

Field Stories

Vehicle Platform Electric Bus Project

deVCU as Vehicle Controller


Scope of Work

Model based development

Simulation

Matlab based code generation

Team Size – 3 Resources

Outcome

Planned for production

Customer Location

INDIA

Development Toolchain

CAN dbc file import for communication message configuration.
Dedicated MATLAB Simulink tool boxes
Bootloader
ISO 14229-2013-03-15 UDS Diagnostics stack
IoT Devices
IoT Devices

Automotive IoT Devices

•Customized firmware development
•Customized hardware development
•Ready solutions
•Cloud interface
•Customized Packaging
